BC Valtac / Specifications

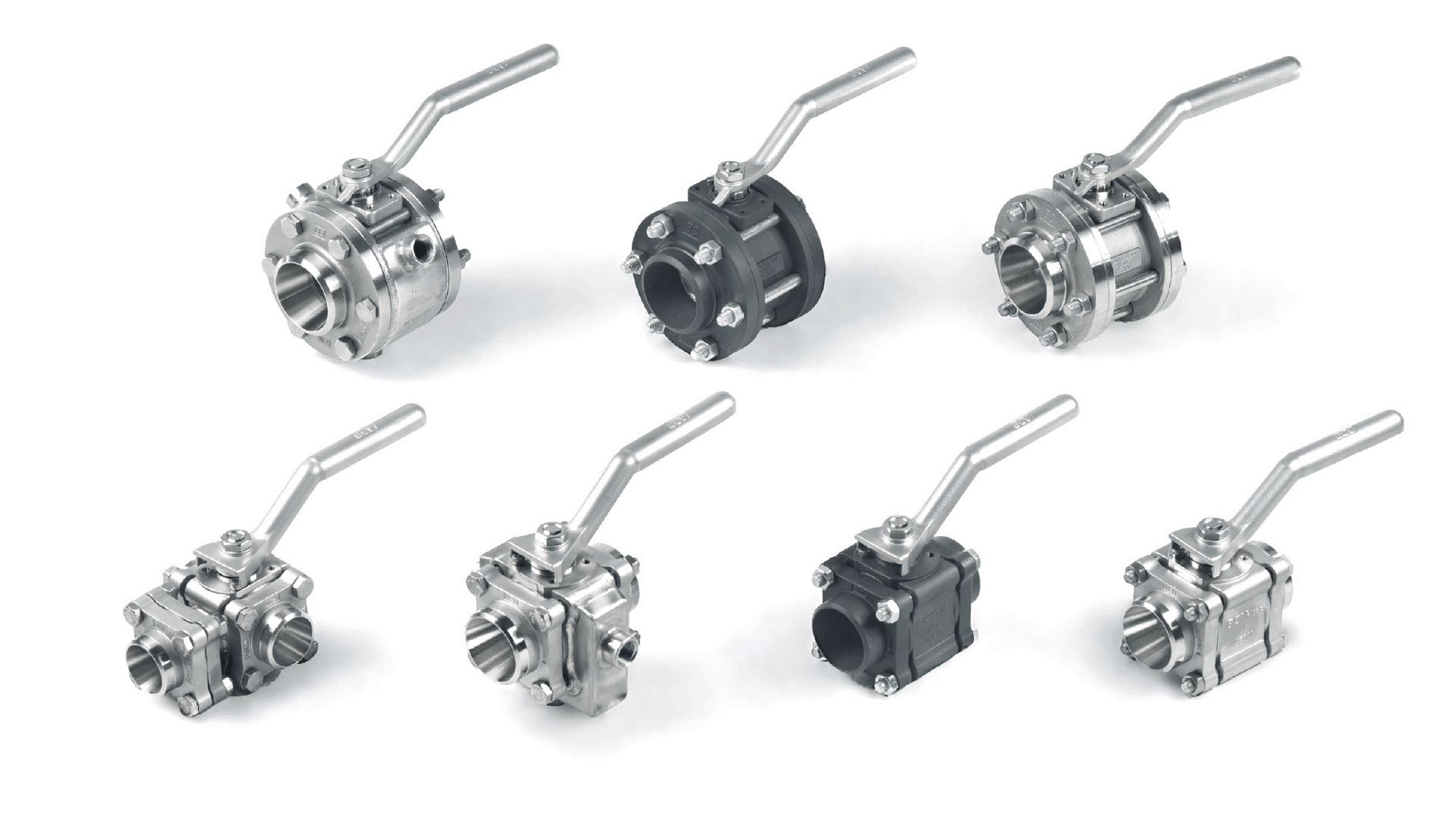

BCV Family

Premium Three-Piece Body Ball Valve

Premium Three-Piece Body Ball Valve

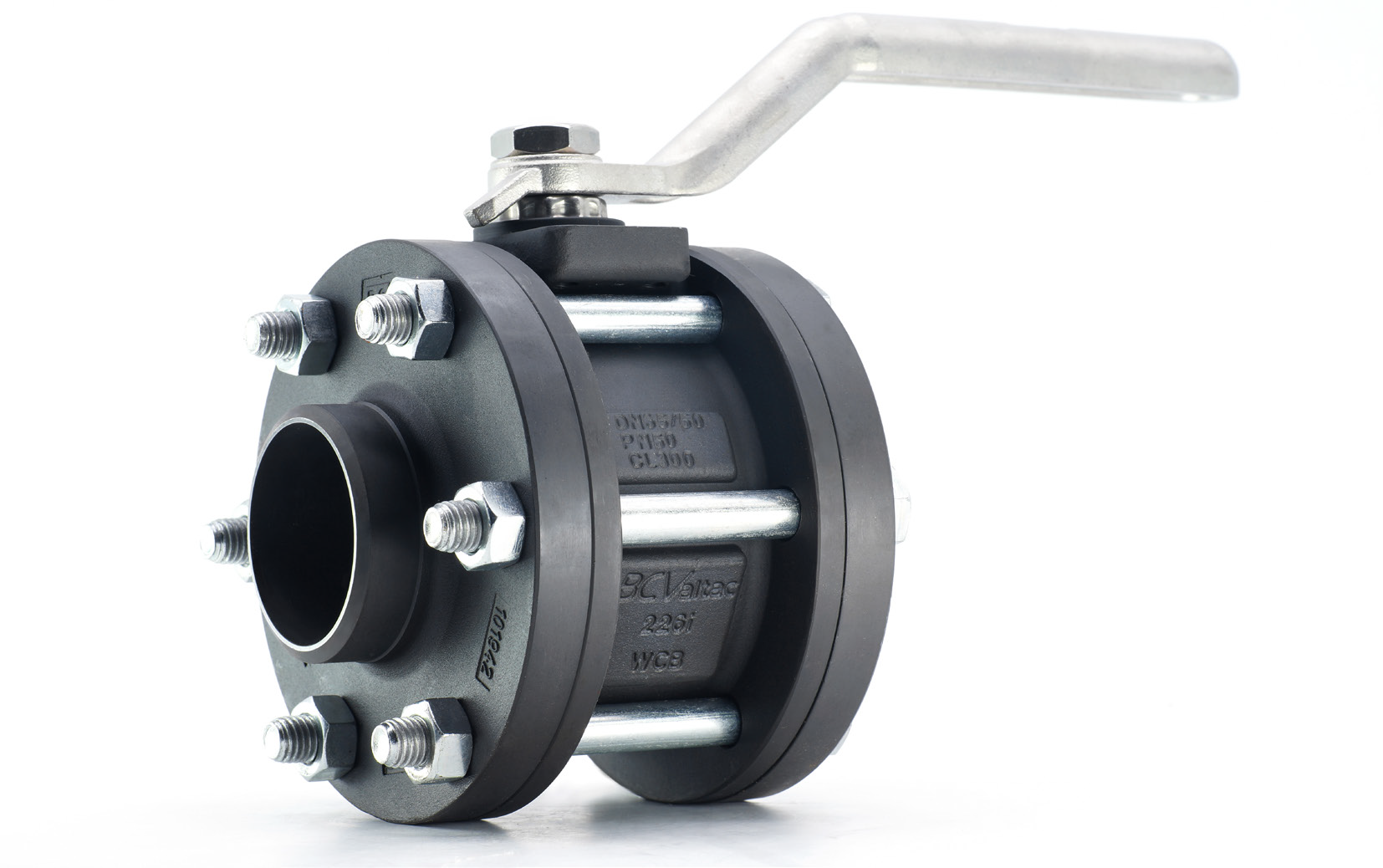

Premium Three-Piece Body Ball Valve 3

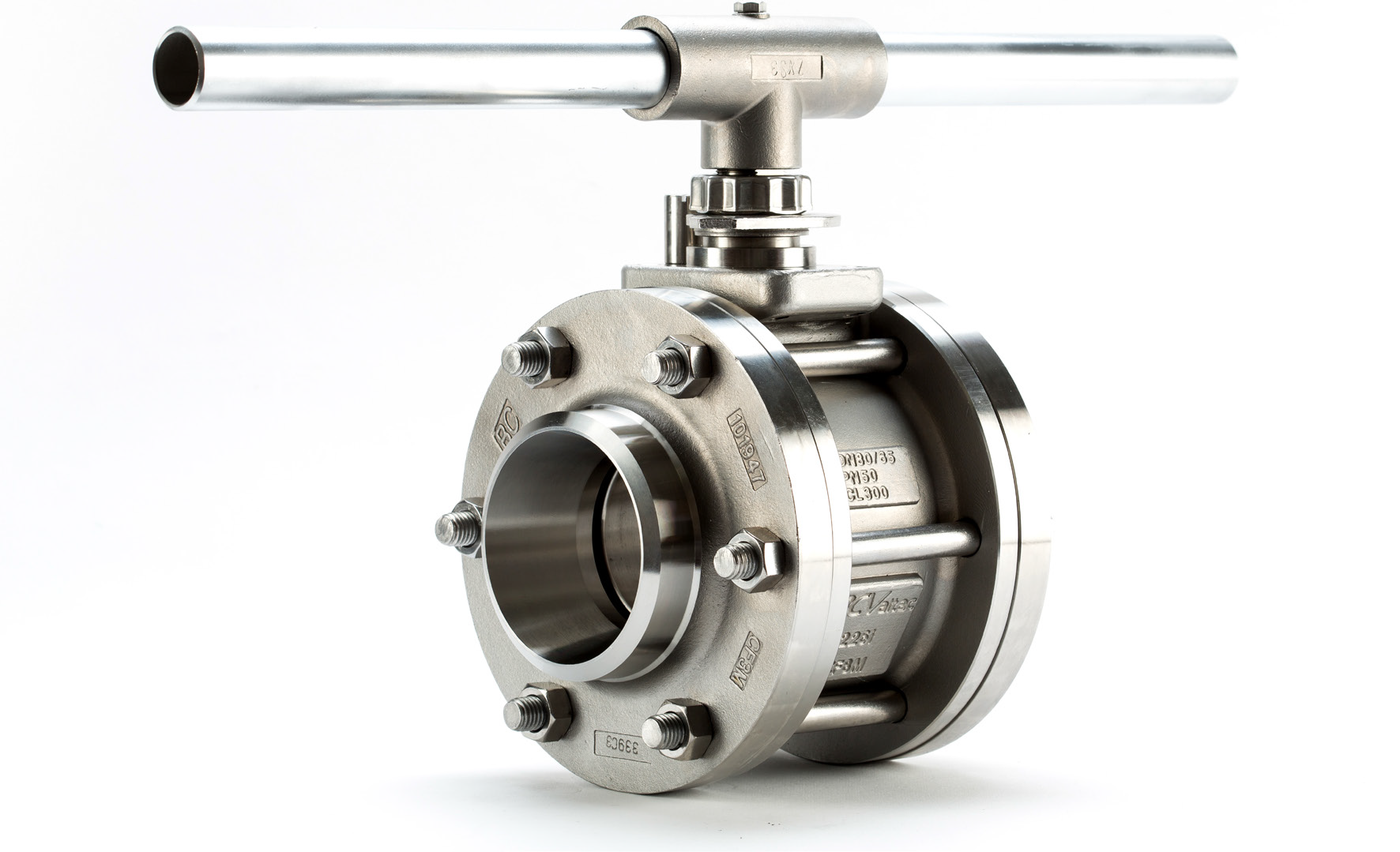

Premium Three-Piece Body Ball Valve 4

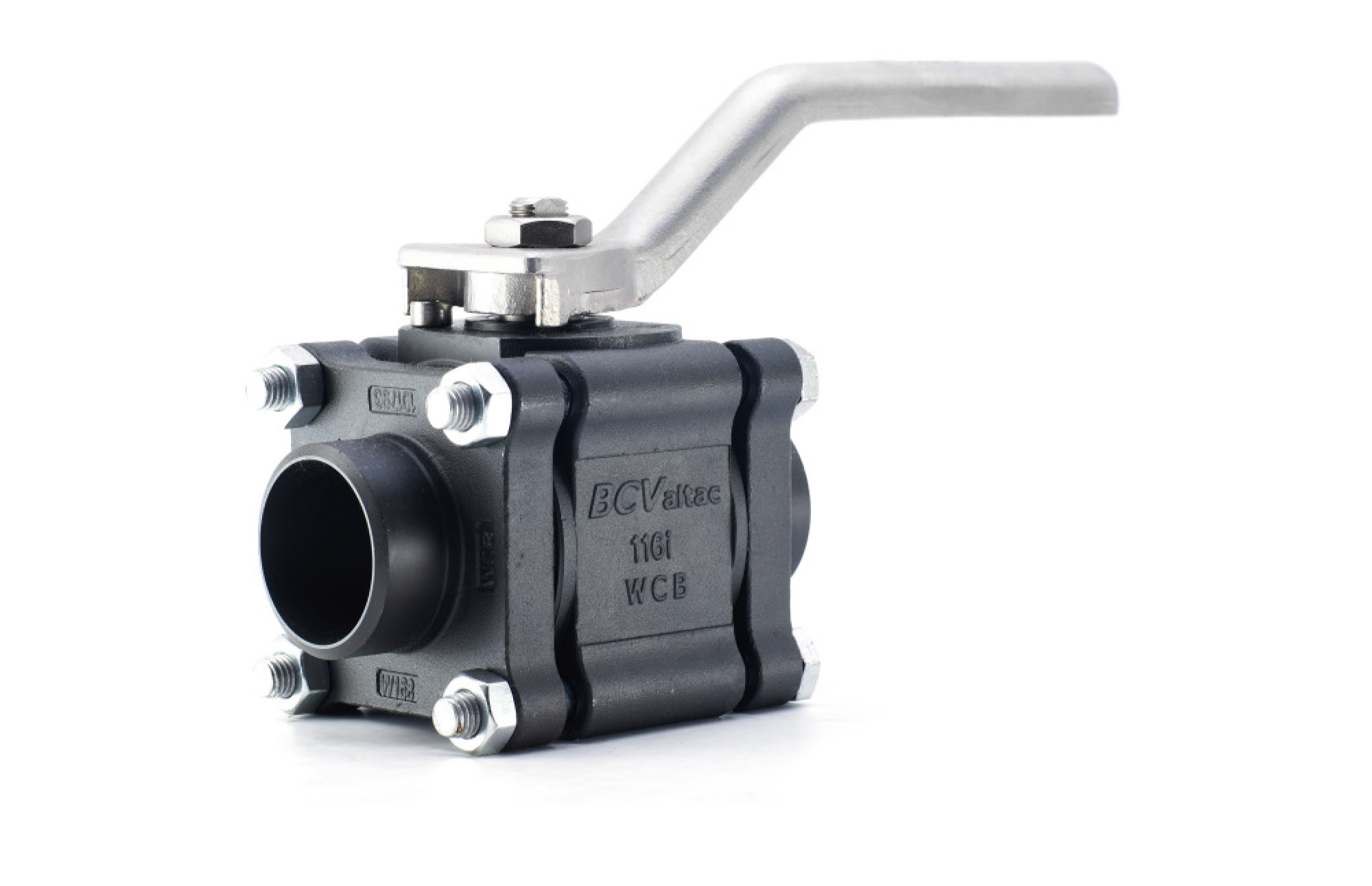

Premium Three-Piece Body Ball Valve 1

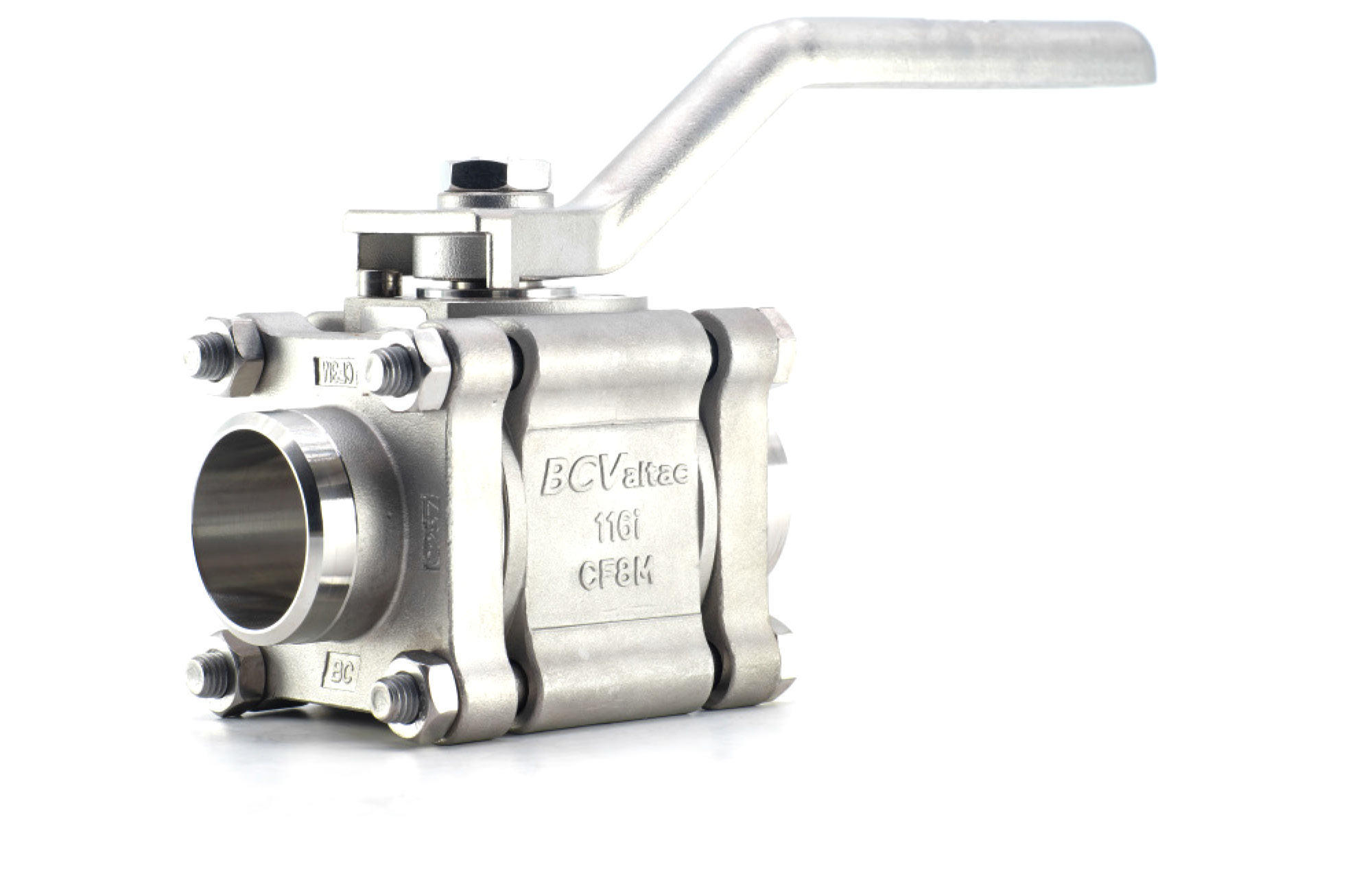

Premium Three-Piece Body Ball Valve 2
PRODUCT

INFORMATION

Body Design
Premium Three-Piece Body Ball Valve



Material Options (Body)

  • Carbon Steel
  • Stainless Steel 316
  • Duplex Stainless Steel



Sizes
1/4” to 6” (DN8 to DN150)



End Connections
Butt weld, Socket Weld, Threaded (BSP/NPT)



Pressure Rating
Up to PN100 or 1450 PSI



Method of Operation
Lever Operated / Actuated

Seat Options

  • 25% Glass-Filled PTFE
  • 33% Carbon-Filled PTFE
  • 50% Stainless Steel-Filled TFM
  • TFM1600
  • PEEK



Features

  • Fully Encapsulated Body Bolts
  • Blowout-Proof Stem
  • Body Seal in Separate Groove
  • Engineered Seats with dual profiles
  • Special hardened stem and ball (upon request)
  • Special material options and customization requests
SEAT OPTIONS
Pressure / Temperature

GRAPH

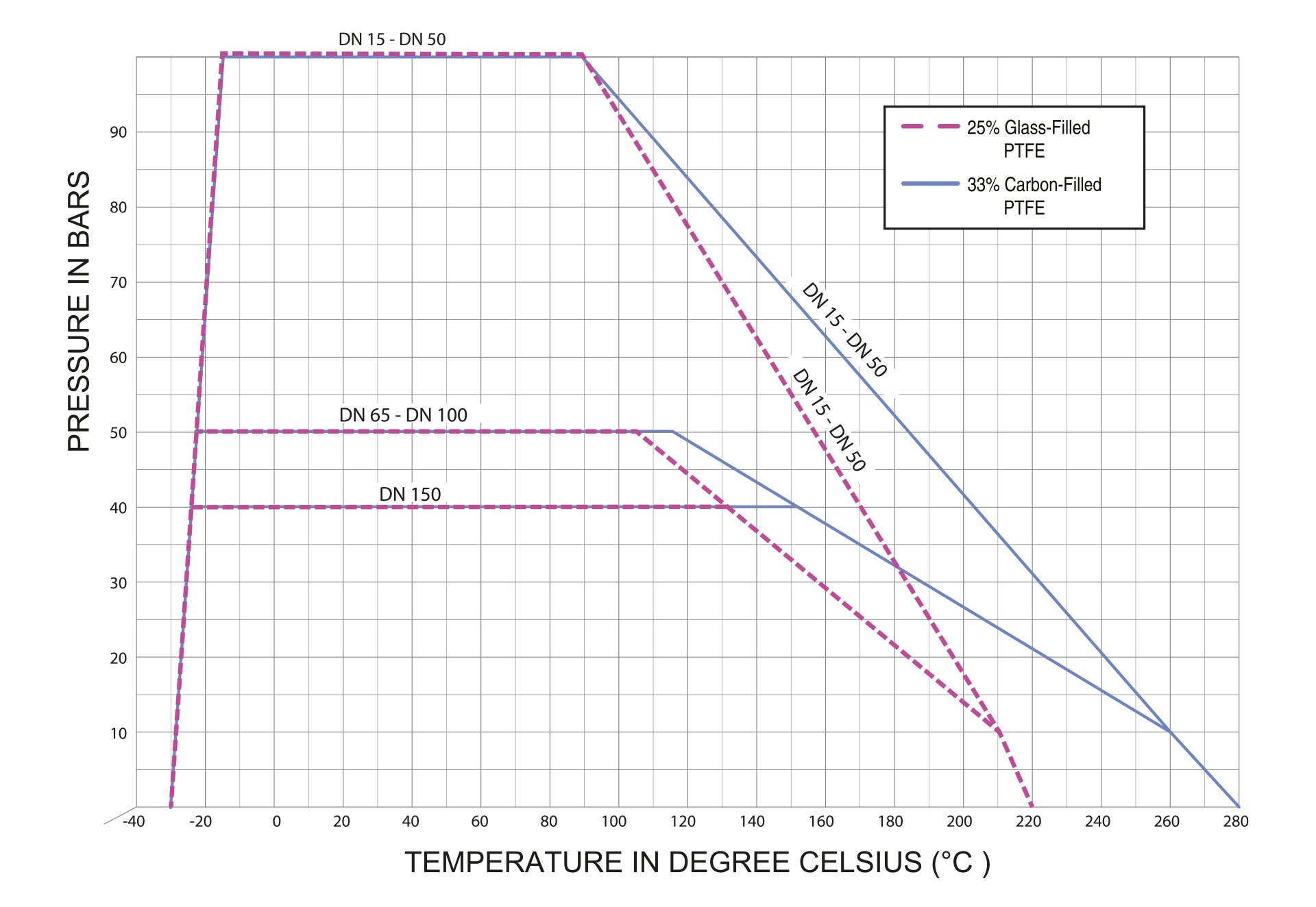

Pressure Temperature Graph
Premium Heat-Jacketed Ball Valve
Premium Heat-Jacketed Ball Valve

BCV’s Heat-Jacketed valve is a Full Jacket, which allows for an efficient mechanism to transmit heat effectively and all around the important dynamic components of the valve. It’s design allows for ease of installation in a series format and proper drainage of steam condensate. Rated up to 20 bars. It is also easily interchangeable with an existing installation of a standard BCV valve center section.

SEAT OPTIONS
Premium L-Port Design Ball Valve
Premium L-Port Design Ball Valve

BCV L-Port ball valve provides flexibility in operations and bi-directional flow capability.

SEAT OPTIONS
